7.0inch AMOLED Touchscreen 1080P FHD 1080*1920 Gaming Console OLED Screen Panel

Category

Display model GL700AMC10B AMOLED display with a capacitive touchscreen is a color active-matrix AMOLED Module using Low-Temperature Poly-soliton TFTs (Thin Flim Transistors) as active switching devices. This module has a 7.0-inch diagonally measured active area with resolutions(1080 horizontal by 1920 vertical pixel arrays). Each pixel is divided into RED, GREEN, and BLUE dots arranged in vertical stripes and this module can display 1.07B colors.

Additional information

Item No.

GL700AMC10B

MOQ

2pcs

Lead Time

7 Working Days For Samples.

Payment Term

Paypal, T/T

Statu

Production

Customization

Support

Availability

3 to 5 Years Stable Supply

Product Details



Display model GL700AMC10B AMOLED display with a capacitive touchscreen is a color active-matrix AMOLED Module using Low-Temperature Poly-soliton TFTs (Thin Flim Transistors) as active switching devices. This module has a 7.0-inch diagonally measured active area with resolutions(1080 horizontal by 1920 vertical pixel arrays). Each pixel is divided into RED, GREEN, and BLUE dots arranged in vertical stripes and this module can display 1.07B colors.



  • General Description

      1.1 Features

1.1.1 7.0” AMOLED Touchscreen Panel

1.1.2 Supported FHD(1080×1920 pixels) Resolution

1.1.3 Green Design

1.1.4 Driving Frequency: support 60hz-144hz



  • Product Features:
FeaturesSpecificationUnit
Display Size(Diagonal)7.0inch
Resolution1080RGB*1920
Display ModeAMOLED
Display Colors1.07B
Aspect Ratio4:3

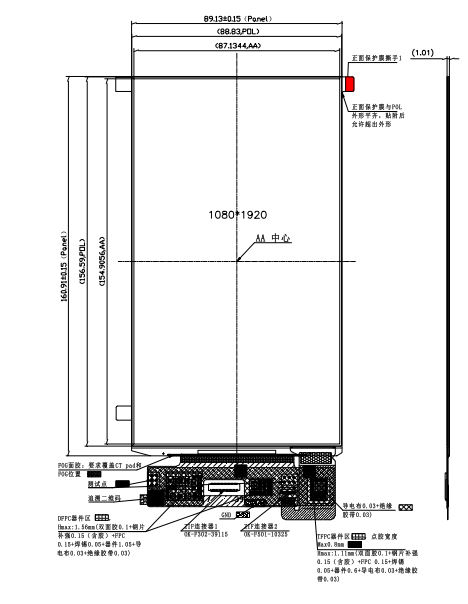

Outline Dimension101.4(W)*174(H)*2.275(D)mm
Active Area87.13(W)*154.91(H)mm
Driver ICICNA3512
PPI315
View DirectionIPS
LCM InterfaceMIPI 4Lane

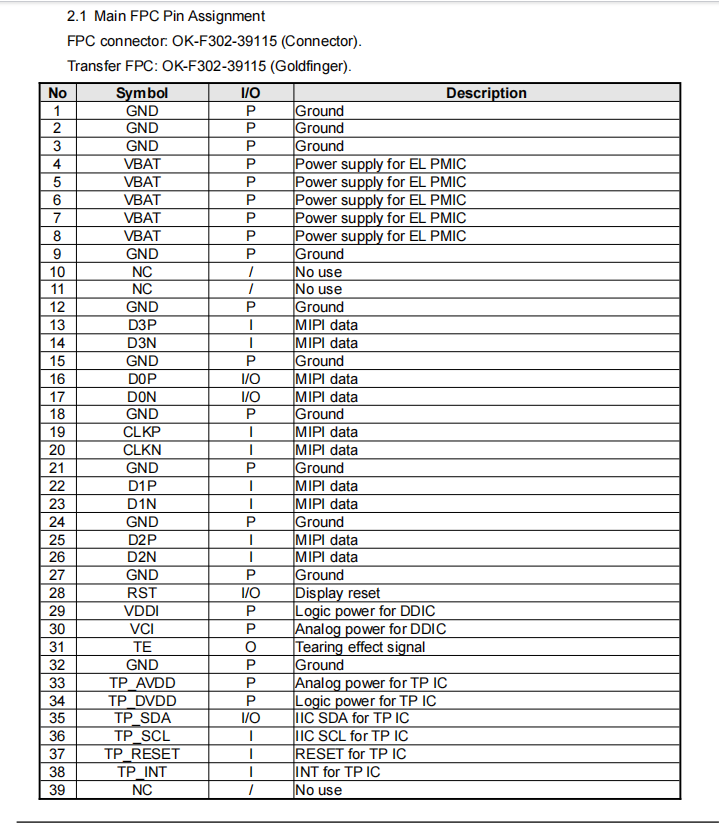

Pin Number39Pin
Luminance800cd/m2
Connector TypeFH26-39S-0.3SHW
Frequency60Hz-144Hz
Contrast Ratio100,000 : 1
Operation Temperature-10 to 60
Storage Temperature-20 to 70



  • Product Application:
  1. Medical Device
  2. Gaming Console
  3. Tablet
  4. Remote Control
  5. Handheld Device
  6. Smart Home
  7. Industrial device
  8. Automotive



Company Details

tft lcd display

GL Electronics has devoted itself to the manufacturing and development of high-quality products for the Wearable TFT LCD and IOT LCD Displays including 0.85inch to 13.3inch Small TFT LCD, Round Circular TN IPS TFT LCD Displays, Square TFT LCD, Transflective& Reflective& Sunlight readable TFT LCD Displays, Resistive Touchscreen, Capacitive Touch Panel, OLED Display, and PMOLED LCD Modules, OEM&ODM Customization Solutions.

As a Professional Manufacturer Of small & medium-sized displays, we have manufactured color TFT LCDs Display more than 150 models, including 0.85inch 128*128 square LCD displays, 1.09inch round IPS LCD screens, 1.39inch 360*360 MCU Round display, 1.45inch and 1.52inch round QSPI LCD Screen Touch panel to meet the different requirements for the customers all over the world. We are not only a displays manufacturer but also are customer solution partner. We provide LCD Customization such as FPC design, Capacitive Touchscreen & Resistive Touch Panel, Backlight, and HDMI Driver Board solutions to meet customers’ requests. Free accessories such as Connectors, Cables, and Small breakout boards can be provided, and a three to five years long-term supply is available.

GL Electronics is an ISO approved for both quality ISO9001 and environment ISO14001, RoHS certificated manufacturer. As a leading manufacturer in the small TFT display modules market, GL Electronics will continue to dedicate the research & development, and design, of new technology of LCD, TFT, and OLED displays Solutions.

lcd screen connectors

WhatWe Provide

Customization is supported if you could not find the right displays on our website. Over 80% of our products are customized versions. Customized products can help you increase the added value of products and improve product competitiveness. Give us an idea of how you want it to be and we will help you make it become a real product.

capacitive touchscreen

Capacitive Touchscreen Customization

A touchscreen or touch screen is the assembly of both an input (‘touch panel’) and output (‘display’) device. The touch panel is normally layered on the top of an electronic visual display of an information processing system. The display is often an LCDAMOLED or OLED display while the system is usually a laptop, tablet, or smartphone.

  1. Different size: 0.96inch to 15.6inch;
  2. Touch Panel Function: Waterproof touch, Single and Multiple Touch, Multiple Interface;
  3. Surface Treatment: Anti-Glare, Anti-Reflective, Anti-Finger Shape;
  4. Cover Glass Surface Treatment: Support different shapes, holes, and different colors of the screen printing of LOGO. Corning( Gorilla Glass) is available, thickness –  0.55mm,0.7mm. 1.0mm, 1.1mm, 1.8mm, 2.0mm, 3.0mm;
  5. FPC- Different Shapes and lengths;
  6. Touch Driver IC: FT****, GT***, depends on the project;
  7. Interface Support: I2C, USB, HDMI…
  8.  Bonding- Frame bonding or OCA(Optical Bonding)…
lcd screen panel

FPC Customization

Flexible Printed Circuit (FPC) Customization is the most common and easy change part of the TFT LCD Display. Here are the details that you need to know:

  • Different Interface-SPI 3/4Wire, Quad-QSPI,  MCU 16/18/24Bit, RGB 16/18/24Bit, MIPI DSI, LVDS, EDP, HDMI, I2C, USB…
  • The shape of the FPC (Easy for placing/connecting to your board…)
  • Pin Definition (It would be better to provide a draft…)
  • Connector Mode (Plug-in, Soldering, Board to the board….)
  • Length of the PFC ( How long will you need….)
  • Pitch ( 0.3mm, 0.35mm, 0.5mm)
  • Pin Number (10pin, 12pin, 20pin,30pin…)
  • EMI Films (Electro-Magnetic Interference)
  • Screen printing– Logo, Text, Pictures…

Generally, we will need our customers to provide detailed information about FPC customization. It will be better to provide a drawing for evaluation. Lead time is 7 to 15 working days/ 3 weeks. And we will provide 2pcs of free samples for the test. The full datasheet will be provided after samples are verified.

lcd screen backlight

Backlight Customization

backlight is a form of illumination used in liquid crystal displays (LCDs). As LCDs do not produce light by themselves—unlike, for example, cathode ray tube (CRT) displays—they need illumination (ambient light or a special light source) to produce a visible image.

  • Dimension of the backlight including Length, Width, and Thickness. Because the thickness will affect the LED and LED panels.
  • LED Color- It depends on the application of customers’ Standard colors are white, red, blue…
  • Brightness- It will affect the number of the LED for the backlight, the higher brightness, the more LEDs, and the power consumption will be higher.
  • Backlight Connection Mode-FPC connector, PCB Connector, Socket Connector…our displays are FPC connector

Lead time is 20 to 30 working days. The full datasheet will be provided after the samples are verified.
