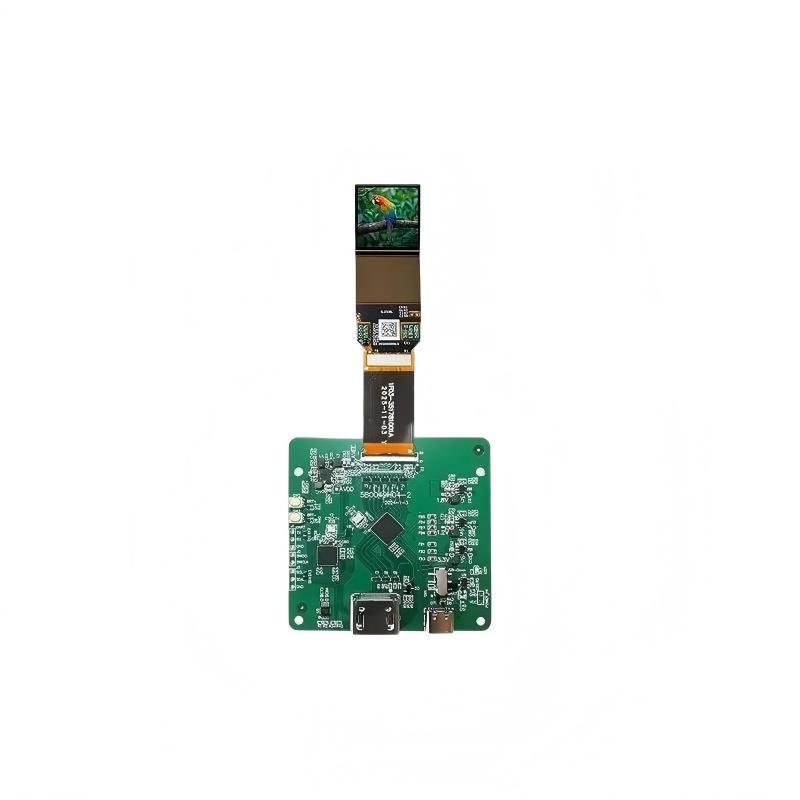

1.03inch Microdisplay Dual Micro OLED 2560*2560 1800nit 3000nit TYPE C HDMI Driver Board

GL103AMN10A is a  1.03-inch diagonal, 2560(RGB) × 2560 dots active-matrix color OLED panel module based on single-crystal silicon transistors. This panel integrates the panel driver and logic driver and realizes small size, lightweight, low power consumption, and high resolution.

Additional information

Item No.

GL103AMN10A

MOQ

1pc

Lead Time

7 Working Days For Samples.

Payment Term

Paypal, T/T

Statu

Trial Production

Customization

Support

Availability

5 Years Stable Supply

Product Details



GL103AMN10A is a  1.03-inch diagonal, 2560(RGB) × 2560 dots active-matrix color OLED panel module based on single-crystal silicon transistors. This panel integrates the panel driver and logic driver and realizes small size, lightweight, low power consumption, and high resolution.



  • Product Features:
  • 2560 x 2560 Real RGB Resolution
  • Frame rate: 30 to 90Hz
  • The normal operation supports full-color mode: 16.7M colors (24-bit 8(R):8(G):8(B))
  • Interface
    1. MIPI+ I2C
    2. MIPI DSI (Display Serial Interface) with 4 lanes, 1.2Gbps/Lane
    3. Support MIPI DSI Video mode: non-burst mode with sync pulse and non-burst mode with sync event
    4. Support Multi resolution:1920×1200(16:10),1920×1080(16:9), 1600×1200(4:3) , 1280×1024(5:4), 1280×720(16:9) ,1024×768(4:3)
  • Vertical/Horizontalscandirectioncontrol
  • Orbit supported
  • Wide range Brightness adjustment
  • Normal/Rolling/Dimming mode
  • Temperature compensation
  • 3Powerinput:ELVDD(5.5v),ELVSS(-5v),VDDI(1.8v)



  • Mechanical Features
FeaturesSpecificationUnit
Display Size(Diagonal)1.03inch
Model NoGL103AMN10A
Number of dots5.76M (1600x1200x3)
Resolution2560*2560Pixels
Luminance1800cd/m2
Pixel Size6.3x 6.3μm
Frame Rate60~120Hz
Outline Dimension22.77*21.09*1.5mm
Useable Display Area18.432* 18.432 / 1.03'' diagonalmm
Contrast Ratio100,000:1 typical
Uniformity> 85%
Power Consumption500mW
InterfaceMIPI (1port D-PHY)
Gray Levels256 or 1024
Operating Temperature-20°C to +70°C
Storage Temperature-40°C to +80°C
Pin Number60Pin



  • Product Application:
  1. Virtual Reality Application(AR/VR)
  2. Head-mounted displays(HMD)
  3. Near-Eye Displays
  4. Augmented Reality
  5. Viewfinders
  6. Rangefinder
