Your LCD Display Adapter Board Solution Expert
Customized LCD Controller Board
- Compatibility design for specific LCD displays to meet unique needs.
- No & Low MOQ Requirement for Samples and Production.
- Personal engineer for full one-on-one support
With more than 14 years of manufacturing experience in the Display industry, GL Electronics provides 100+ Display Modules.
GL Electronics Provide HDMI and PCB Customization service that can design the driver board according to your requirements.
From communication to order confirmation, product production and processing and after-sales have exclusive engineers!
What We Can Do
GL Electronics focus on the development of the LCD with Control board. From simple control board to video control board, we always tailored according to customers’ requirement.
HDMI To MIPI Convert Board
- Compliant with DCS1.02
- Compliant with the HDMI1.4
- ESD 4kV HBM
- Input Voltage:+5V(2A)
- Dimensions: 50*46*4.8mm
- RoHS Compliant

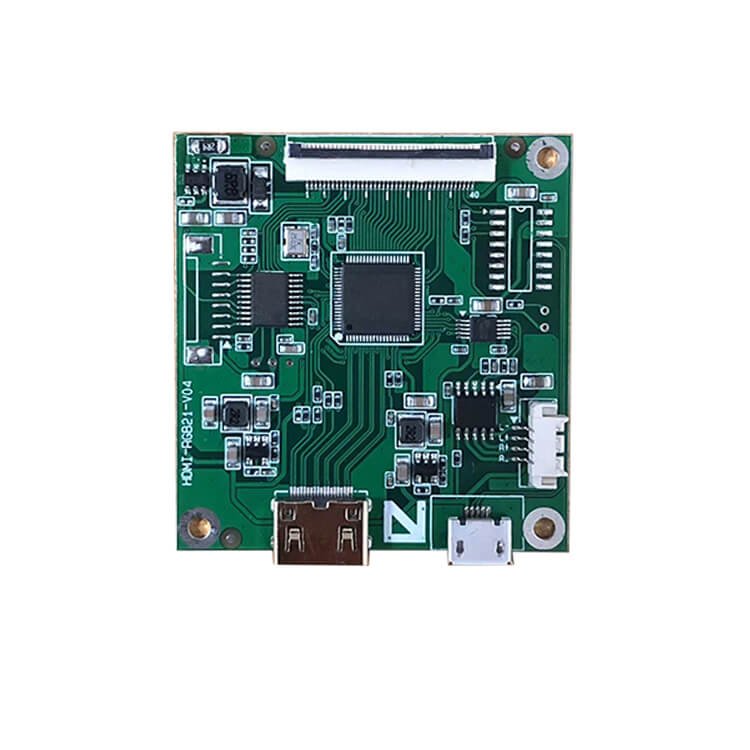

HDMI To RGB Control Board
- Mini HDMI 1.4 standard input;
- Output RGB, supports touch;
- For 2.1/2.8/4.0inch Round LCD
- Type-C input voltage: +5V;
- PCBA size: 50* 47* 5mm;
- RoHS lead-free certification;
HDMI to eDP Control Board
- Compliant to HDMI1.4;
- Support 3840x2160@30Hz(4K);
- Support Hot-Plug Detect;
- DP1.2 compliant output;
- RBR(1.62Gbps), HBR(2.7Gbps);
- Input voltage+12V;
HDMI to LVDS Control Board
- Compliant with the HDMI 1.4;
- Support VESA and JEIDA;
- Output 1 configurable port;
- Input Voltage:+5V;
- Dimensions: 66* 50* 5mm;
- RoHS Compliant;
LVDS to HDMI Convert Board
- Detect LVDS signals;
- Single& Dual LVDS signal input;
- Voltage input +5V;
- PCBA size: 50*40*4.5mm;
- Built-in 2*10Pin pin
- RoHS lead-free certification;
LVDS to MIPI Control Board
- LVDS input supports 1 channel;
- MIPI output supports 4 lanes;
- Supports horizontal &vertical;
- Input voltage: +5V;
- With backlight drive circuit;
- PCBA: 40*40*3.5mm,
TYPE-C to MIPI Control Board
- 0.39inch 1920*1080@60Hz;
- For AR/VR, thermal imaging;
- Support Type-C video output;
- Brightness adjust by button;
- PCBA size: 18*55*4.5mm
- RoHS lead-free certification;
MIPI to LVDS Control Board
- MIPI signal input is DSI;
- Clock lanes to be continuous;
- Non-Burst& Burst Video;
- Voltage input: 12V
- PCBA size: 63*48*4.5mm
- support 1920*1080@60Hz
Check Display + Control Board
Different Types of Control Board support your samples test and production.
Applicable to AR/VR, thermal imaging, scopes, cameras, etc.
- Resolution: 800*600
- Active Area: 6.48*4.86mm
- Interface: I2C+RGB,MIPI
- Brightness: 2000 nit
- Frame Rate: 50~120Hz
- Power Consumption: 220mW
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -40°C to +80°C
Applicable to AR/VR, thermal imaging, scopes, cameras, etc.
- Resolution: 1920*1080
- Active Area: 4.96*8.74mm
- Interface: MIPI or MIPI+I2C
- Brightness: 300 nit
- Frame Rate: 50~120Hz
- Power Consumption: 468mW
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -40°C to +80°C
Applicable to AR/VR, thermal imaging, FPV, Gimbal, etc.
- Resolution: 1920*1080
- Active Area: 10.783*6.065mm
- Interface: MIPI
- Brightness: 1800 nit
- Frame Rate: 60Hz~90Hz
- Power Consumption: 468mW
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -40°C to +80°C
Applicable to AR/VR, thermal imaging, FPV, Gimbal, etc.
- Resolution: 1920*1200
- Active Area: 15.5* 9.72mm
- Interface: MIPI
- Brightness: 2000 nit
- Frame Rate: 50Hz~70Hz
- Power Consumption: 500mW
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -40°C to +80°C
Applicable to Automotive, Gauge, Coffee Machine, Smarthome etc.
- Resolution: 480*480
- Mini HDMI 1.4 standard input;
- Interface: SPI+RGB
- Brightness: 300 nit
- Control Board: HDMI to RGB
- Output RGB, supports touch;
- Type-C input voltage: +5V;
- RoHS lead-free certification;
Applicable to Automotive, Gauge, Coffee Machine, Smarthome etc.
- Resolution: 480*480
- Mini HDMI 1.4 standard input;
- Interface: SPI+RGB
- Brightness: 300 nit
- Control Board: HDMI to RGB
- Output RGB, supports touch;
- Type-C input voltage: +5V;
- RoHS lead-free certification;
Applicable to Automotive, Smarthome, Thermostat etc.
- Resolution: 480*480
- Mini HDMI1.4 version input
- Interface: MIPI
- Brightness: 500-1000nit
- Support devices with video output
- Input Voltage Type-C (+5V)
- Support Reverse Charging
- RoHS lead-free certification;
Applicable to Automotive, Smarthome, Thermostat etc.
- Resolution: 720*720
- Mini HDMI1.4 version input
- Interface: MIPI
- Brightness: 500-1000nit
- Support devices with video output
- Input Voltage Type-C (+5V)
- Support Reverse Charging
- RoHS lead-free certification;
Applicable to Automotive, Smarthome, Media player etc.
- Resolution: 720*720
- Mini HDMI1.4 version input
- Interface: MIPI
- Brightness: 300nit
- Support devices with video output
- Input Voltage Type-C (+5V)
- Support Reverse Charging
- RoHS lead-free certification;
Videos of LCD Control Board
GL Electronics Focus on the development of control board and video adapter boards, including LVDS, MIPI, eDP, TTL, HDMI, VGA, Type-C, V-by-one and other video signal adapter boards. If you do not know how to drive your display, you can send the display to us and we will help you.
Advantages of Customized Controller Board
**Seamless fit**
Perfectly match your LCD panel to avoid compatibility issues.
**Flexible functions**
Customizable on-demand for touch, audio, brightnee control,OSD, etc.
**Size optimization**
Compact design which is adaptable to any device perfectly.
**High Efficient**
Low power consumption, high resolution, excellent performance.
**Cost advantage**
More economical for mass production, unit price as low as possible.
**Reliable quality**
Full inspection before the shipment and ROHS Certificated, stable and durable.
**Unique design**
Protect technology and enhance the product competitiveness.
**Fast delivery**
3 weeks for samples, 4-6 weeks for mass production, efficient response.
LCD Controller Board Customization Guide
Shenzhen GL(Guangli) Electronics Co.,Ltd is not only a Chinese small color TFT LCD display manufacturer (0.32 inches to 13.3 inches) and OLED display procurement company, but also a HDMI custom design solution provider.
We listen to customer feedback during communication with customers, continuously improve product quality and feedback speed, and provide customers with customized, unique LCD driver boards to help customers quickly develop projects and save time and cost. Whether it is a few hundred or a few thousand, we will do our best to serve you and solve your concerns.
If you are considering importing or purchasing a custom HDMI board for your project, this comprehensive guide is designed to give you a better understanding of the customization process, providing you with all the insights you need to make an informed and considered decision.
Chapter 1
1.Submit Requirements
#### 1. Submit Requirements
– **Time**: Day 1
– **Description**: The customer provides detailed technical requirements, including:
– **LCD specifications**: resolution (such as 1080p, 4K), interface type (such as LVDS, MIPI DSI, eDP), size.
– **Input signal**: HDMI, VGA, DisplayPort, etc.
– **Functional requirements**: touch support, audio output, OSD menu, power consumption limit, etc.
– **Other requirements**: operating temperature range, certification (such as RoHS), production quantity.
– **Customer action**: Submit requirements document, preferably drawings.
Chapter2
2. Technical Assessment & Quotation
#### 2. Technical Assessment & Quotation
– **Time**: Day 2-3
– **Description**: Our team evaluates the feasibility of the requirements and provides preliminary solutions and quotes:
– **Technical Assessment**: Confirm signal conversion solution (such as HDMI to LVDS), chip selection (such as TDA19988, LT8918).
– **Design Suggestions**: Propose optimization suggestions (such as size adjustment, power optimization).
– **Quotation**: Include sample costs, batch unit price, MOQ and other requirements.
– **Customer Action**: Review the quotation and plan, and propose modification suggestions.
Chapter 3
3. Design Confirmation & Sample Production
#### 3. Design Confirmation & Sample Production
– **Time**: 4th-14th day (1-2 weeks)
– **Description**: After the customer confirms the plan, start designing and making samples:
– **Circuit Design**: Draw PCB layout and integrate required functions (such as EDID, HDCP support).
– **Sample Production**: Quickly produce 2-5 samples.
– **Preliminary Testing**: Internally verify functions, signal stability and power consumption.
– **Customer Action**: Pay the sample fee (usually through PayPal or wire transfer) and wait for delivery.(We will provide drawing for confirmation within 3 working days after the payment is confirmed.)
Chapter 4
4. Sample Testing & Feedback
#### 4. Sample Testing & Feedback
– **Time**: Day 15-21 (1 week)
– **Description**: After receiving the sample, the customer will test it and provide feedback:
– **Test content**: resolution support, interface compatibility, power consumption performance, size matching, etc.
– **Feedback**: Point out areas that need adjustment (such as function addition, size fine-tuning).
– **Iteration**: If modification is required, return to step 3 to re-make the sample (usually completed within 1 week).
– **Customer Action**: Submit test results and modification suggestions (photos/videos can be attached).
Chapter 5
5. Mass Production & Delivery
#### 5. Mass Production & Delivery
– **Time**: Day 22-50 (4-6 weeks)
– **Description**: After the sample passes, enter the mass production and delivery stage:
– **Production Preparation**: Purchase materials and optimize the production process.
– **Quality Control**: 100% functional testing to ensure consistency and comply with RoHS/CE and other standards.
– **Logistics arrangement**: air freight (10-15 days) or sea freight (30-45 days) to the customer’s designated location.
– **Customer action**: Inspect the goods to confirm whether they meet the requirements.
Main Applications
With a wide range of high-quality display solutions designed to meet the specific needs of various markets around the globe, our company prides itself on providing expert advice and exceptional customer service from initial concept to final production, drawing on over 50 of industry experience and technical expertise in design and electrical engineering. And we are still developing new TFT-LCD Products to meet our customers requirement.
Industrial HMI
Our company specializes in providing high-quality industrial LCD displays that meet the demanding needs of various industries. We offer customization options to tailor our displays to our customer’s specific needs, including size, resolution, connectivity, and specialized features. We also ensure long-term supply by working closely with our suppliers to maintain a reliable and consistent supply of components and investing in the latest manufacturing technologies. Our commitment to excellent customer service and support ensures that our customers receive expert guidance in choosing the best display for their application and after-sales support for complete satisfaction. With our focus on quality, reliability, and durability, we are confident that our industrial LCD displays can meet the needs of any industrial process.
Automotive
We specialize in providing displays for a wide range of industries, including automobiles, motorcycles, e-bikes, construction, and agricultural machinery. With our professional consulting and quality management, we ensure that our displays meet the high standards of the automotive industry. Furthermore, our vast product and solution portfolio allows us to cater to almost any customer requirement.
Our customization options include everything from adjusting the display size and resolution to adding unique features such as touchscreens, anti-glare coatings, and more. We work closely with you throughout the customization process to ensure that the final product meets your exact specifications.
At our company, we pride ourselves on our commitment to quality, innovation, and customer satisfaction. Whether you’re looking for a standard display or a customized solution, we have the expertise and experience to deliver exactly what you need.
IOT(Internet of Things)
our company is dedicated to providing high-quality TFT LCD/OLED displays for the Internet of Things, and we are committed to helping our customers take advantage of the many benefits of this exciting and rapidly growing technology. Whether you are building a simple IoT device or a complex system, we have the expertise and experience to help you succeed.
We believe that the IoT is the future of technology, and we are committed to helping our customers take advantage of its many benefits. Our displays are designed to be both powerful and flexible, allowing our customers to build innovative and cutting-edge IoT applications.
We understand that every customer has different needs and requirements, which is why we offer a wide range of displays that can be customized to meet specific needs.
Smart Home
Our team of experts works tirelessly to create displays that meet the unique needs and requirements of our customers. We are providing cutting-edge TFT LCD/OLED display solutions for smart homes such as lighting control, temperature control, Thermostat, etc.
Our displays are equipped with the latest technology, allowing for easy and intuitive control of your smart home devices, such as lighting, temperature, and security systems. Not only square displays, round TFT LCD displays/OLED displays are available for you.
Our displays are not only functional but also stylish and sleek, complementing the modern aesthetic of any smart home. We pride ourselves on providing high-quality displays that are durable and long-lasting, ensuring that you get the most out of your investment.
Handheld Device
As a TFT LCD display provider, we offer standard products and customization solutions for handheld devices. Our standard products come in various sizes, resolutions, and aspect ratios to cater to different device requirements. We also provide customization solutions that include an interface, and backlight brightness. We also offer touch panel integration, cover glass customization, and other value-added services to ensure our customers’ complete satisfaction.
Our customers can expect high-quality TFT LCD displays that are reliable, durable, and easy to integrate into their device designs. We use advanced technology and strict quality control measures to ensure that our products meet the highest standards and deliver optimal performance. Our experienced engineering team provides comprehensive technical support and guidance throughout the customization process to ensure that our customer’s specific needs are met.
Wearable Device
Wearable devices are becoming increasingly popular, and there are various types of displays available on the market, including round and square displays. Most customers prefer a touchscreen display for their wearable devices due to its ease of use and versatility.
Are looking for a responsive and durable touchscreen that is easy to use and navigate. We can provide a high-quality touchscreen, not only normal cover glass but also Corning(Gorilla) glass. We offer a range of customization options, including round and square displays, which can give customers more choices and better meet their needs.
Most customers prefer round shape touchscreen, with the smallest cover glass and bezel, and 2D/3D glass technology to make the appearance looks good.
Common Questions
Most Popular Questions.
We have listed some questions you may ask. If you have more inquiries about our products, you can send an inquiry to contact us.
For standard micro OLED displays/ microdisplays , we have samples in stock. The lead time is 3-7 working days for samples.
For bulk order, MOQ 50pcs or 50sets would be no problem. We accept small orders for trial order that to support our customers’ project and startup businesses.
Before development, we need to know the terminal application of your products. In addition, we need to know the appearance structure& Outline dimensions, and main functions of the board, whether it is a simple adapter board or a functional development board(PCB), which is crucial for us to evaluate the project and cost.
Generally, customers are required to provide simple drawings to facilitate engineers to confirm the mold details. The development cycle of the board is generally 4-6 weeks after the drawing is signed back as confirmation.
There is No MOQ for samples evaluation. As for trial and mass production, 50pcs/sets would be okay.
The availability of microdisplays depends on the liquid crystal glass and driver IC. From the perspective of industry standards, both the glass and the driver IC can be used for 8-10 years. Once there is a change, we will notify you 6 months in advance and find a suitable solution to maintain the stability and continuity of the project.
There are two main methods to light up the display. For some enterprises, they would like to develop their own mainboard to test the display. In that case, we only need to provide the datasheet/ specification and the initilization code and debugging documents to them which will help them power up the display.
For quick evaluation, most customers will by an HDMI/ TYPE-C control board for faster test. In that case, we will provide an HDMI driver board& cable for sample tests.
In some cases, customers will not buy the standard driver board, they will provide their own drawing for the board, we will custom according to their requirements.
At present, our company has two brightness adjustment solutions:
1. Burn existing firmware
The existing HDMI board has been burned with the program. Customers only need to burn the firmware we send you to achieve brightness changes. But the disadvantage is that the brightness firmware must be burned one by one and cannot be changed;
2. Add a chip for brightness control
By adding a chip for brightness control and a UART interface, customers can connect the HDMI board to the customer’s mainboard through a burning cable, thereby realizing the function of controlling the brightness by the mainboard.
According to industry standards, our warranty is 12 months.(Non-artificial).
a. If the customer receives a damaged sample, please contact us directly. If there is stock, we will return it for free within 3 days after receiving the customer complaint.
b. Any non-human damage within the warranty period (12 months), we will produce and return for free within 2-3 weeks after receiving customer complaints and products returned by customers.
c. If it is man-made damage, we need to charge a certain fee to replenish the customer.
Looking for a LCD Display and OLED supplier that supports Control Board Customization with small orders?
We have been engaged in the display industry for 14 years and the OLED industry for more than 10 years. Our rich experience can help you reduce problems in the development process and provide practical and reliable suggestions for your project. You don’t need orders of thousands of pieces, but small batches of dozens or hundreds of pieces to help your project go smoothly.
